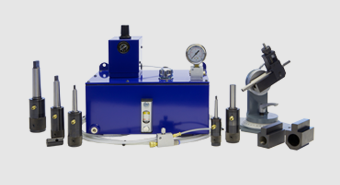

Deep Hole Drilling Accessories


Deep bore Gun drill and Ventec accessories are all available directly from stock and can usually be dispatched within 48 hours.

Rotating straight shank and Morse taper toolholders are available with numerous bore sizes to fit the drill driver diameter you intend to use. Reduction sleeves can be purchased to make it possible to hold multiple driver sizes within the same coolant fed toolholder.

Re-grind fixtures are available for use with Gun drills or Ventecs drills. Please state which you require when ordering.

Spraymist units and cutting fluid, when used with a coolant fed toolholder, make it possible to achieve deep bores on many conventional machine tools.

Hardened steel bushes and whip guides are also available.


View PDF

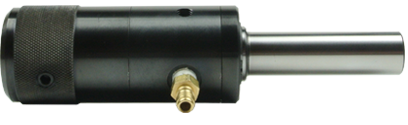

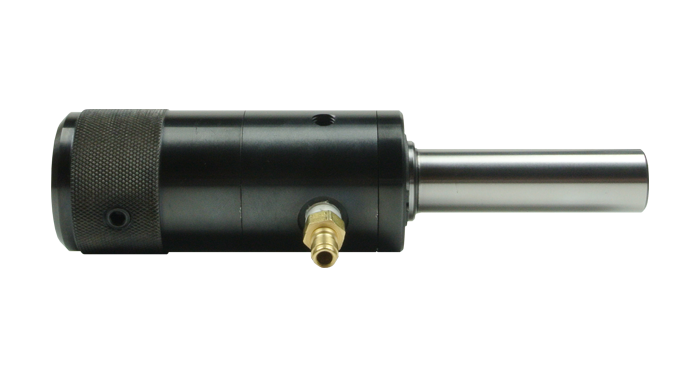

ROTATING
STRAIGHT SHANK
PART NO D1 L1 L2 D2 L3 L D
VT616 16 40 85 32 24 65 16
VT63/4” 25 50 109 46 31 70 3/4"
VT620 25 50 109 46 31 70 20
VT625 25 50 109 46 31 70 25

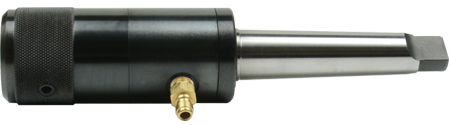

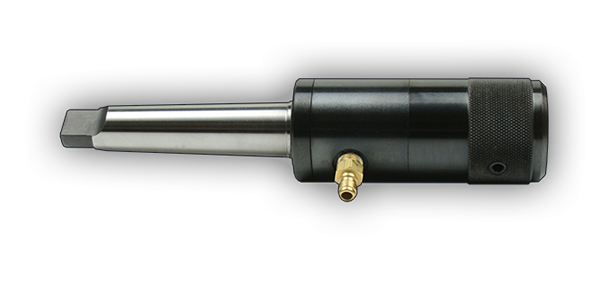

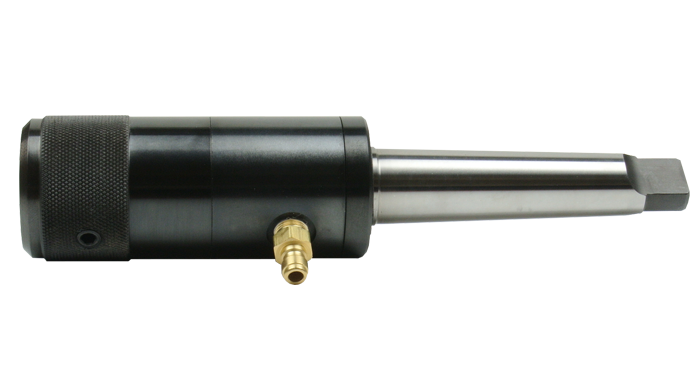

ROTATING
MORSE TAPER
PART NO No
Morse Taper
D1 L1 L2 D2 D3 Tapered
VT516/1 No1 16 40 89 32 24
VT525/2 No2 25 50 113 46 31
VT525/3 No3 25 50 113 46 31
VT535/4 No4 35 60 123 58 28

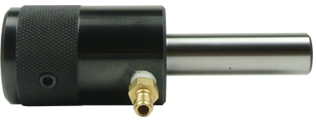

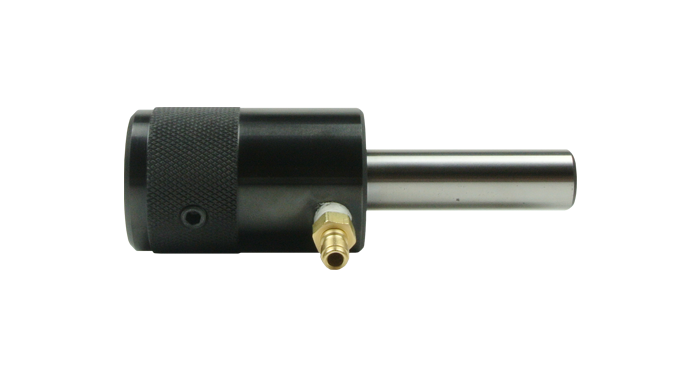

STATIONARY
PART NO D1 L1 L2 D2 L3
Stationary
VT316 16 40 55 33 47
VT325 25 50 70 46 60
VT335 35 60 80 58 70

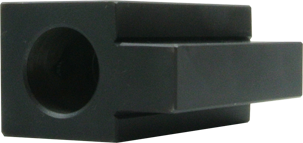

CENTRE LATHE
PART NO D1 L1 A B C E F
Centre Lathe
V225 25 50 9 19 41 19 37
VT235 35 60 14 22.5 53.5 25 50.5

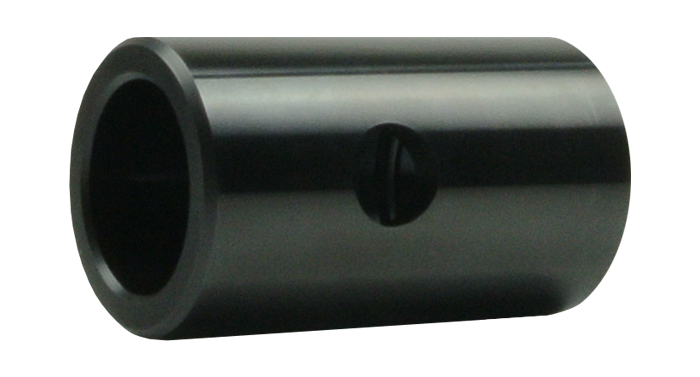

REDUCTION SLEEVE
PART NO D1 D2 L
Reduction Sleeve
VT25/16 16 25 50
VT25/3/4” 3/4" 25 70
VT25/20 20 25 50
VT35/25 25 35 60


Re-grind Fixtures


PART NO
VT100 Ventec Re-grind Fixture
VT101 Gun Drill Re-Grind Fixture



Pumps



PART NO
HA3000 Ventec Spraymist Unit 15 Litres

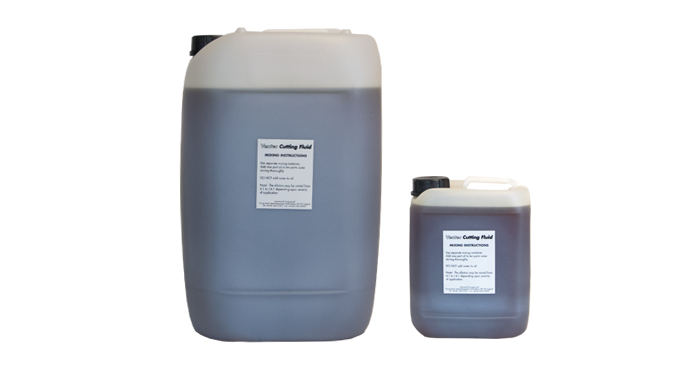

Coolant



PART NO
AVT5 Ventec Cutting Fluid, 5 Litre
AVT25 Ventec Cutting Fluid, 25 Litre

Gundrill Accessories

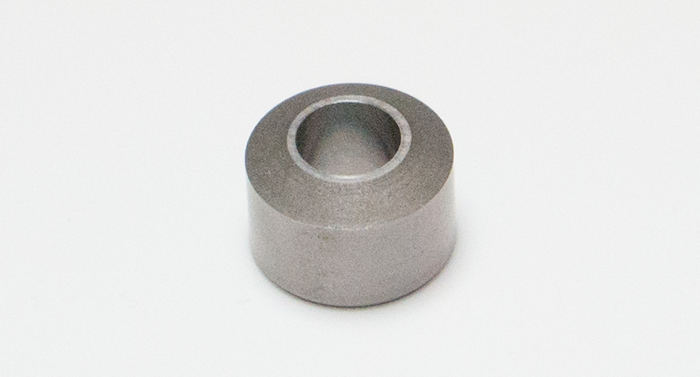

Drill Bushes, please supply drawing as per requirement

Gundrill Accessories

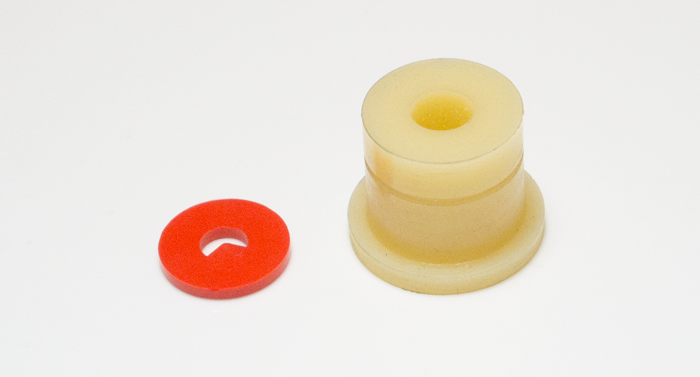

Chip Deflectors and Whip Guides, Available in all sizes
